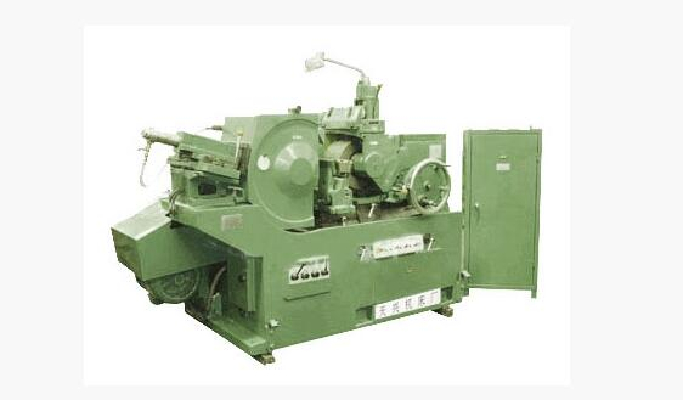

M1083 grinding machine

M1083 grinding machine

  • Min.Order Quantity: 10 Sets
  • Supply Ability: 100 Sets per Month
  • Port: linhai
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-10-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  linhai
  • Brand Name:  tianxing
  • Model Number:  M1083

Grinding diameter

Through grinding

Of the 10 to Phi 150 (mm)

Cut in grinding

Of the 10 to Phi 150 (mm)

Grinding length

Through grinding

250 (mm)

Cut in grinding

190 (mm)

Grinding wheel specifications

X P600 200 x 305

Guide specifications

X PSA350 200 x 127

The wheel speed

At work

7, 12, 18, 23, 29, 34, 58r/min

Dressing time

280r/min

Speed of grinding wheel

1050r/min, 1150r/min

The rotation angle of guide wheel

Vertical plane

-2 degrees to 5 degrees

Horizontal plane

-1 degrees to 3 degrees

The grinding wheel and the regulating center connected to the bottom surface of the bracket height

285 mm

Total power of machine tool

20.7kw

Grinding wheel motor power

11 kw

Wheel motor power

1.5kw

Use power

3 phase 380v50HZ

Machine tool outline dimensions (length x width x height)

2600*1850*1800mm

Weight of machine tool

6600kg

Working accuracy

Roundness

2 (m)

Cylindrical degree

3 (m)

Roughness

Ra0.32 (m)


  • Place of Origin:  linhai
  • Brand Name:  tianxing
  • Model Number:  M1083
