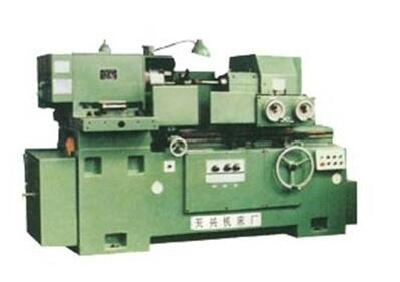

Sample diagram of machine tool
M2120A internal grinder
Characteristics of machine tool:
1 the feeding and correction of the machine tool, which is executed by two mutually non interfering transmission mechanisms, the feed system has the function of grinding the grinding function, adopting two kinds of feeding mode of the manual or hydraulic.
The machine is equipped with 2 jumping mechanism, from the grinding wheel for measurement or correction is unnecessary to reset the tool.
The 3 stage switch valve to ensure the safety of loading and unloading.
4 machine tool in special order, can be equipped with high speed grinding wheel shaft is 18000 RPM / min, in order to adapt to the grinding of 20-50mm hole.
Main specifications and parameters
Metric
1 grinding hole diameter
50 ~ 200mm
2 grinding hole maximum depth
When grinding hole diameter
50 ~ 80 120mm
When grinding hole diameter
80 ~ 150 150mm
When grinding hole diameter
150 ~ 200 200mm
3 the maximum diameter of the workpiece
In the hood
Phi 400mm
Outside the hood
Phi 600mm
4 maximum travel of the table
600mm
6 the maximum rotation angle of the head of a bed
30 degrees
7 the maximum lateral displacement of the head of a bed
250mm
8 workpiece speed (stepless speed regulation)
100 ~ 500r/min
9 table movement speed
grinding speed
1.5 ~ 6m/min
Dressing speed
0.1 ~ 2m/min
Top speed
6m/min
10 hand wheel mobile per turn table
12mm
11 grinding wheel feed scale value
Feed hand wheel per cell
0.002mm
Feed hand wheel
0.4mm
Adjust the hand wheel per cell
0.01mm
Adjust the hand wheel
2mm
12 the maximum transverse displacement of the grinding wheel
70mm
13 working table per minute
30min-1
14 grinding wheel cycle feed
0.002 ~ 0.008mm
15 wheel speed
600050004000r/min
16 hydraulic system pressure
Total power of machine tool
7.8KW
17 working accuracy
Roundness
0.003mm
Cylindrical degree
0.008mm
Roughness Ra
0.63 mu m
18 machine tool outline dimension (length * width * height)
3100 * 2125 * 1320mm
19 weight of machine tool
3400kg
