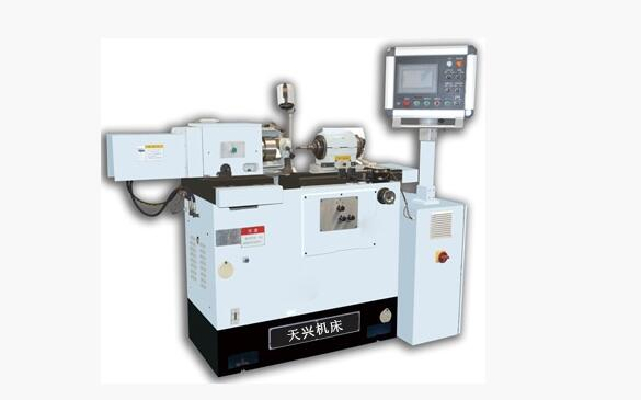

Main features:

This machine bed is made of cast iron casting, compact structure, good stability, strong rigidity.

This machine is a semi-automatic grinding cycle, feed speed, grinding speed and dressing speed for automatic conversion.

This machine parameter settings, adjust the touch screen, can realize man-machine dialogue, easy to operate.

This machine uses the Japanese MITSUBISHI servo motor through the coupling driven ball screw motion, using cross roller guide rail, high precision, good rigidity.

The hydraulic part of the reciprocating motion. The table is automatically controlled by the PLC.

This machine is composed of three clamping piece jaw chuck, hydraulic pneumatic fixture, jig, fixture and other film fixture for the user matching.

This grinding wheel shaft of high-speed electric spindle, controlled by the fine frequency converter, realize stepless speed adjustment.

Specification parameter list

Model of machine tool

MB215

Grinding aperture (mm)

Phi Phi 50 5-

Maximum grinding depth (mm)

Eighty

Workpiece diameter (mm)

Hood (mm)

180.

Outer cover (mm)

220.

Maximum rotation angle of the head of a bed (degree)

30 degrees

Workpiece rotating speed (r/min)

280, 400, 560, 800

Grinding wheel speed (r/min)

16000-24000/18000-60000

Total power of machine tool (kw)

Eight

Workpiece motor power (kw)

0.45/0.75

Grinding wheel motor power (kw)

2-6

Machine tool outline dimension (mm)

1900 * 1650 * 1800

Weight of machine tool (kg)

One thousand and two hundred

Working accuracy

Roundness (m)

Three

Inner hole cylinder degree (m)

Three

Inner hole surface roughness (m)

Ra0.4

Inner hole size dispersion (mm)

Zero point zero one five
