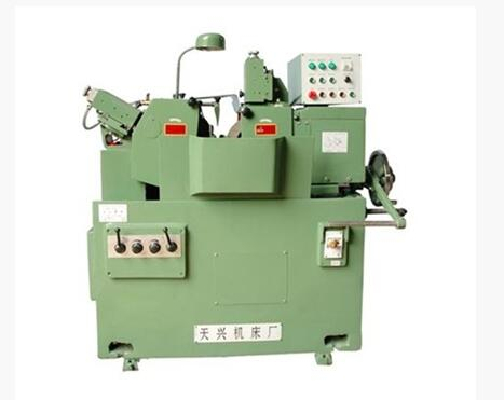

Precision grinding machine MMT1040A
Performance profile of MMT1040A non profile grinding machine
(compared with the traditional MT1040A)
Main specification parameters
Grinding diameter
Through grinding
Mm
2-40
Cut in grinding
Mm
7-40
Grinding length
Through grinding
Mm
One hundred and forty
Cut in grinding
Mm
One hundred and twenty
Grinding wheel specifications
Mm
PSA350 * 125 * 127
Guide specifications
Mm
PSA250 * 125 * 75
Grinding wheel speed
R/min
One thousand eight hundred and seventy
The wheel speed
R/min
20~180
The rotation angle of guide wheel
Vertical plane
DEG
-2~ 4
Horizontal plane
DEG
0~ 3
Hand wheel dial feed
Mm
Zero point zero zero two
The wheel and the wheel center connected to the bracket surface height
Mm
One hundred and ninety
Working accuracy
Roundness
M
One point five
Cylindrical degree
M
Two
Total power of machine tool
KW
Nine point two three
Weight of machine tool
Kg
Two thousand
Machine tool dimensions
Mm
1550 * 1300 * 1400
